OZZ XH1 3,100lm LED Tractor Headlight
OZZ XH1 3,100lm LED Tractor Headlight
Want it fitted?
We can supply and fit this at your home, workplace or depot across Nottingham and the Midlands.

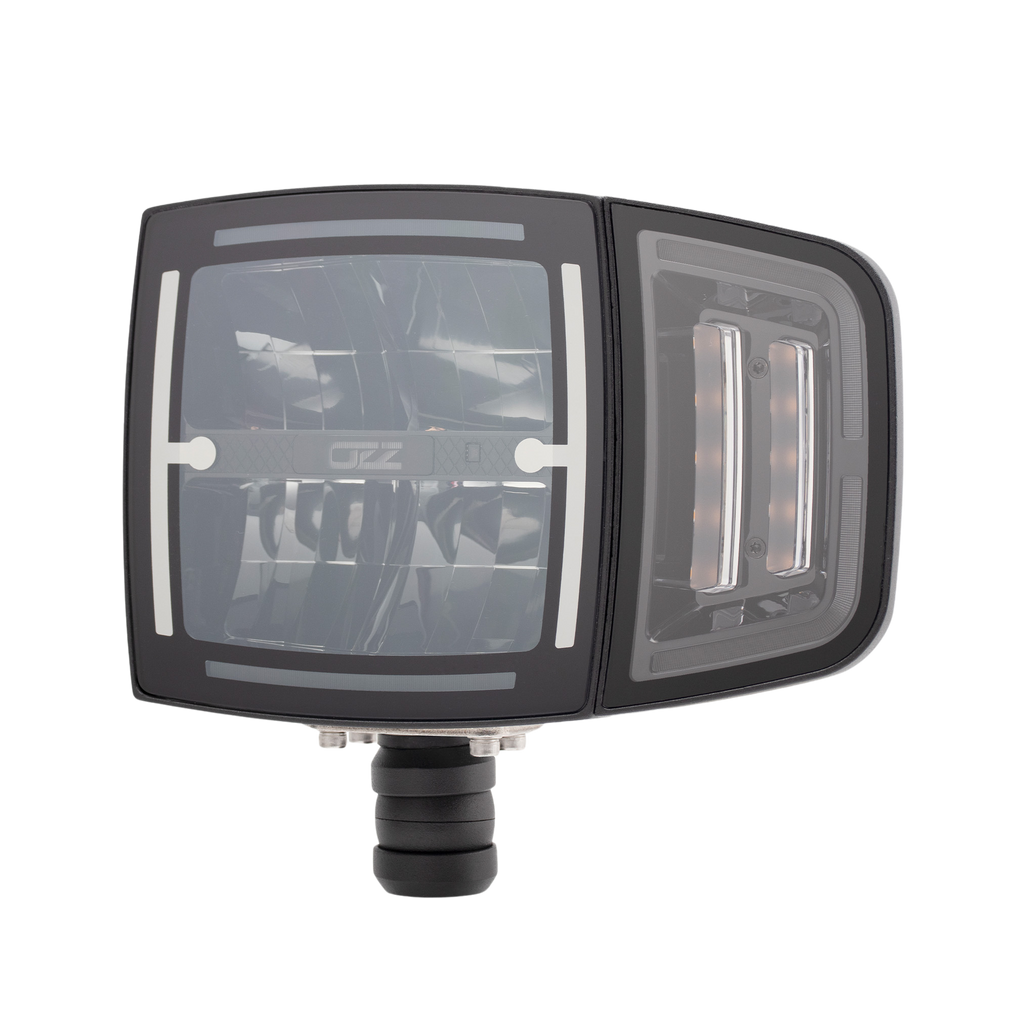

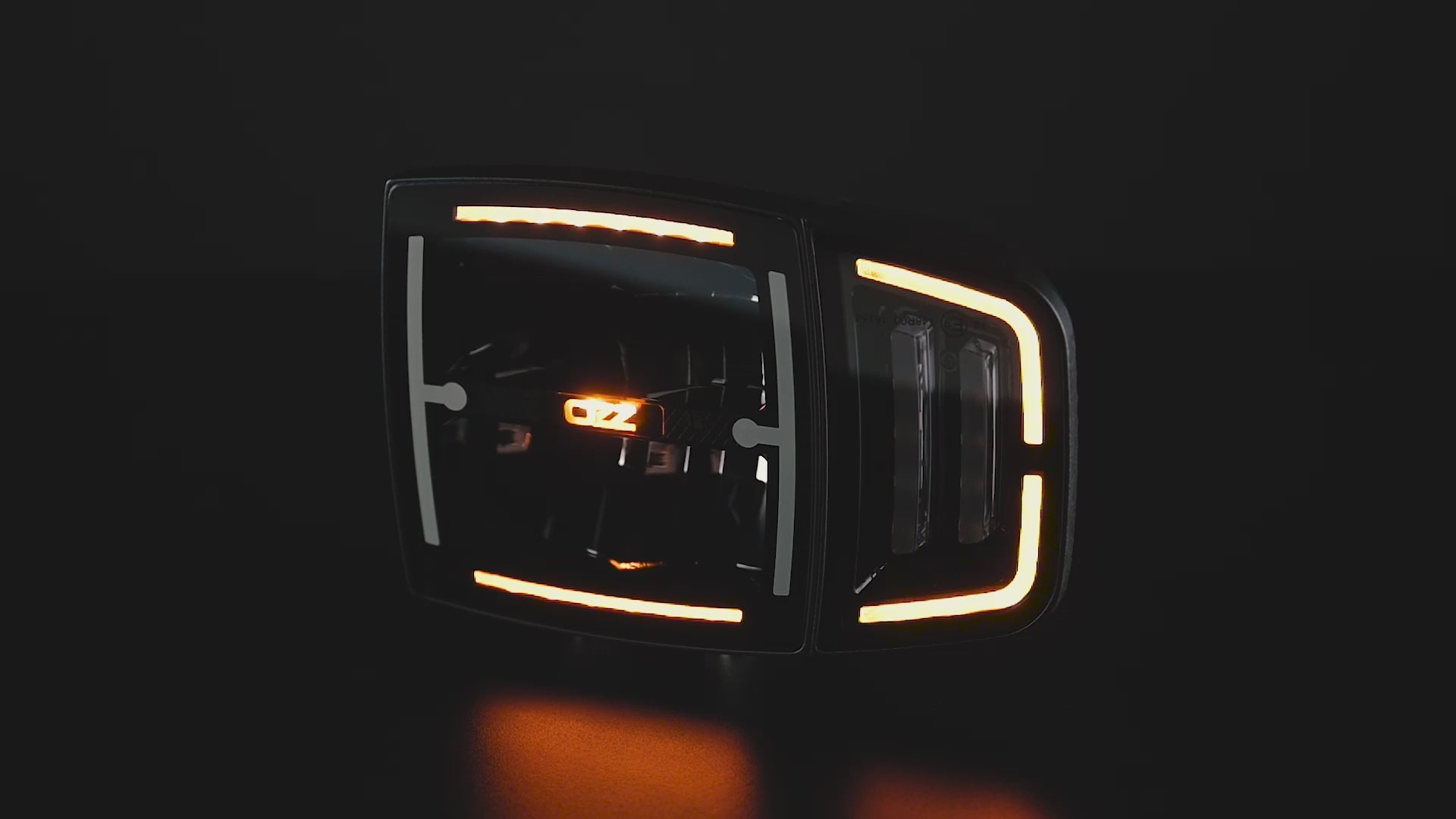

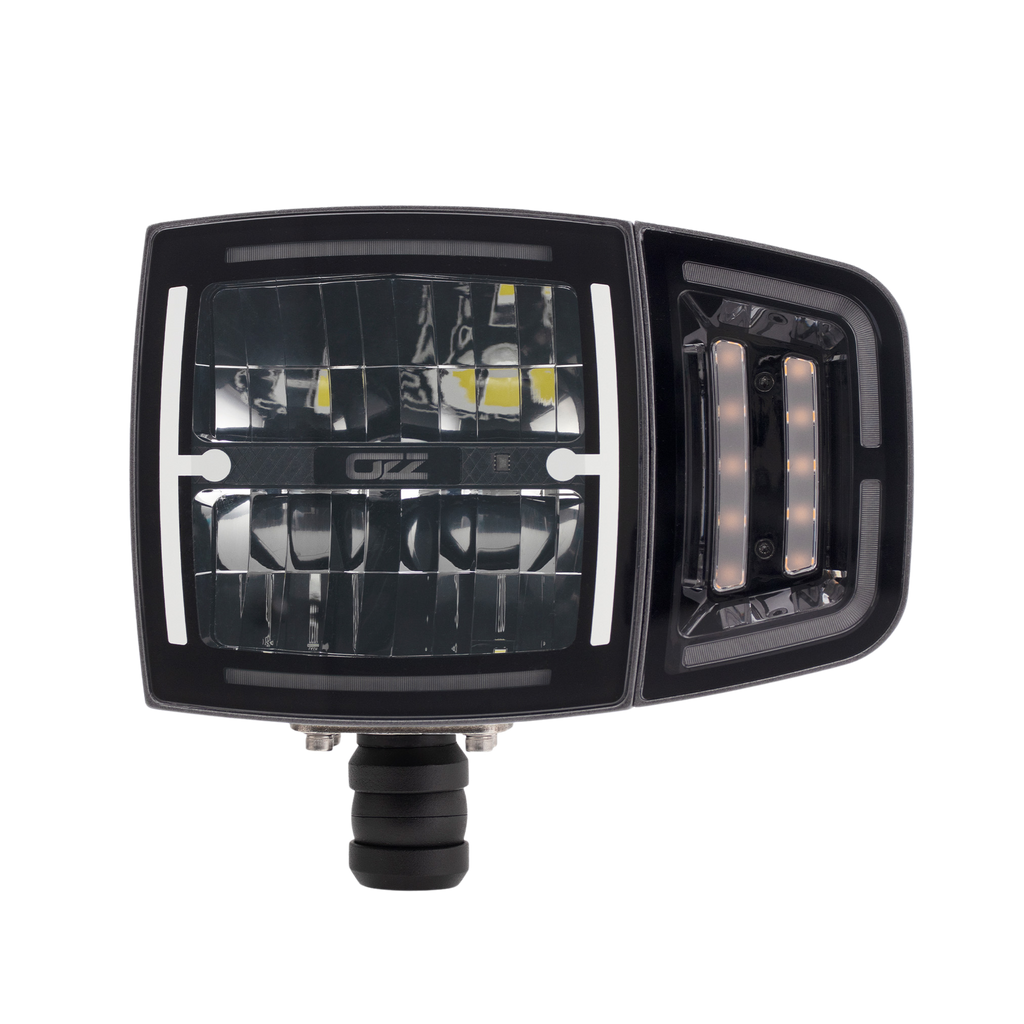

The OZZ XH1 LED tractor headlight combines dipped beam, main beam, an integrated indicator and white/amber position lighting in a rugged unit for agricultural and industrial machinery. Its universal left- or right-hand configuration, adjustable indicator module and heated lens make it a practical option for demanding working environments.
Lighting functions

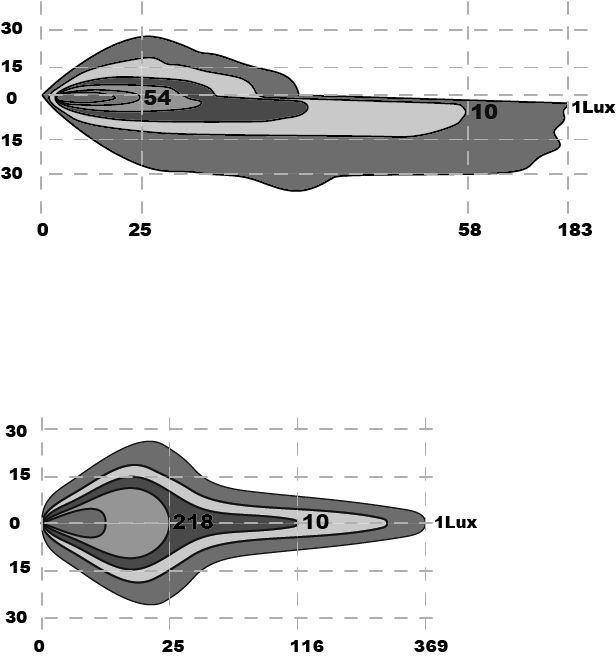

- High beam: 3,100 actual lumens and approximately 365m at 1 lux
- Low beam: 1,700 actual lumens and approximately 183m at 1 lux
- White driving light colour: 5000K

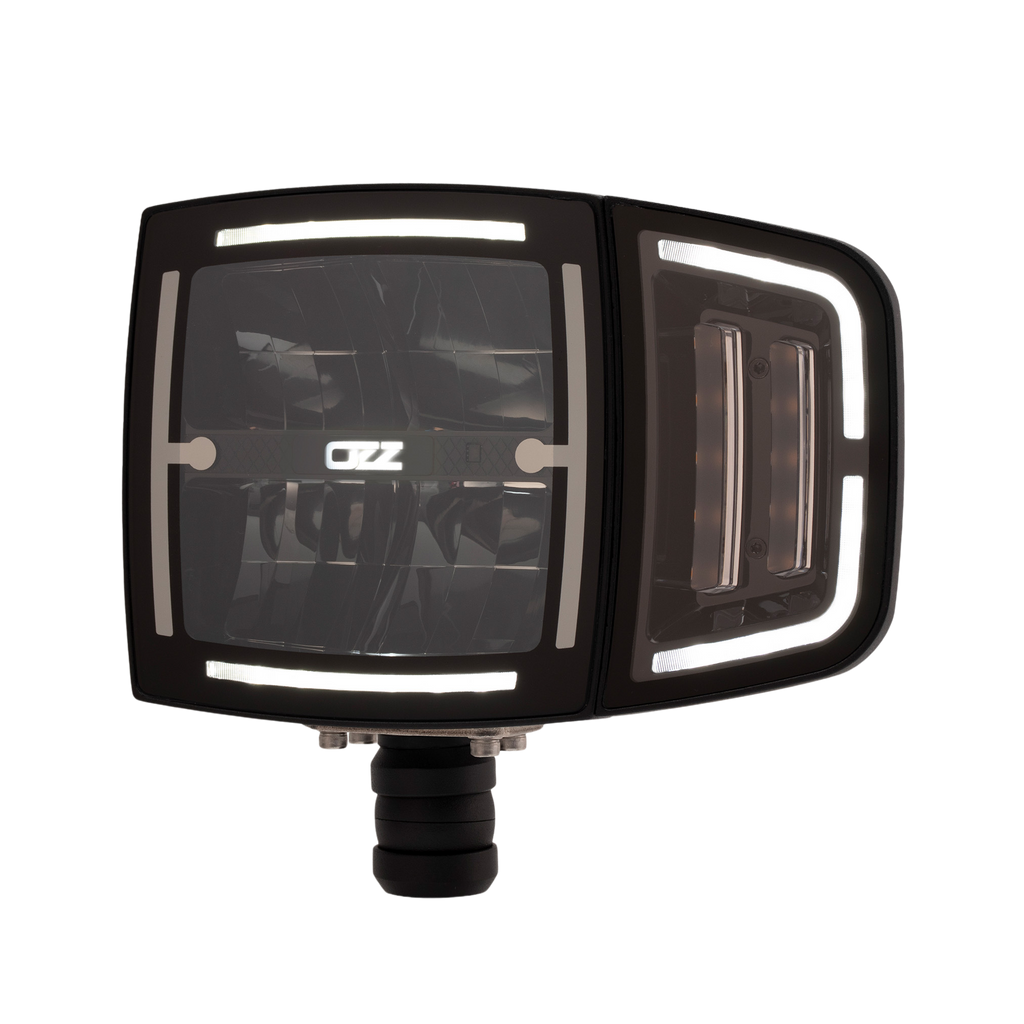

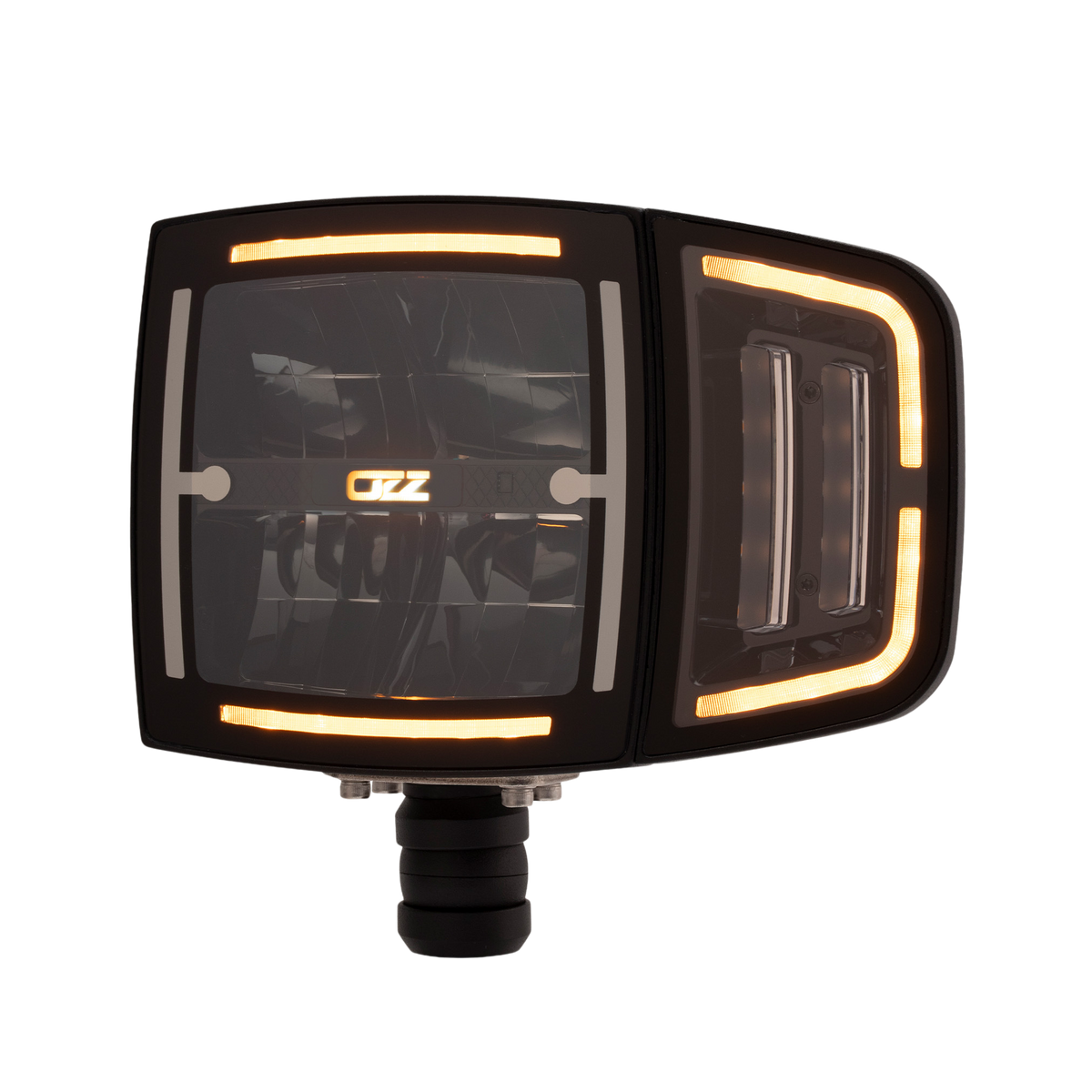

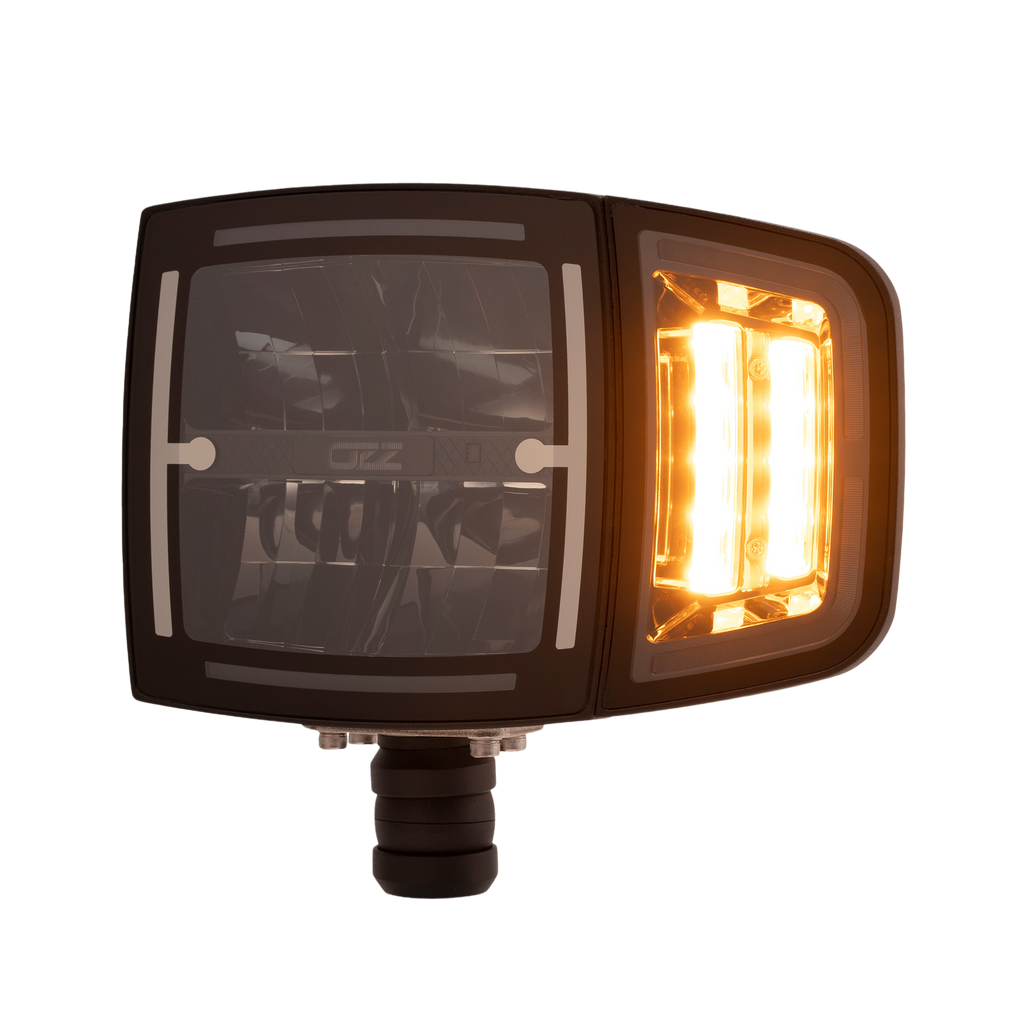

- Integrated direction indicator and white/amber position-light functions
- Automatic heated lens for cold-weather use
Technical specifications
- Manufacturer/SKU: OZZ 88301
- Operating voltage: 10–30V DC
- Approximate power draw: high beam 48W, dipped beam 22.8W at 12V / 24W at 24V; lens heater 30W at 12V / 21.6W at 24V

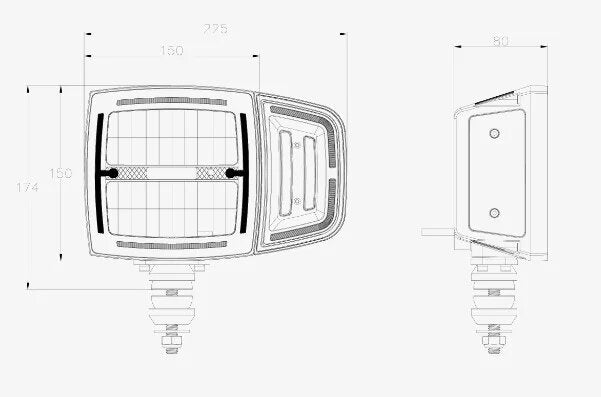

- Dimensions: 225 x 150 x 80mm (approx.)
- Housing: black aluminium; lens: toughened glass
- Connection: 6-pin Deutsch
- Protection rating: IP69K

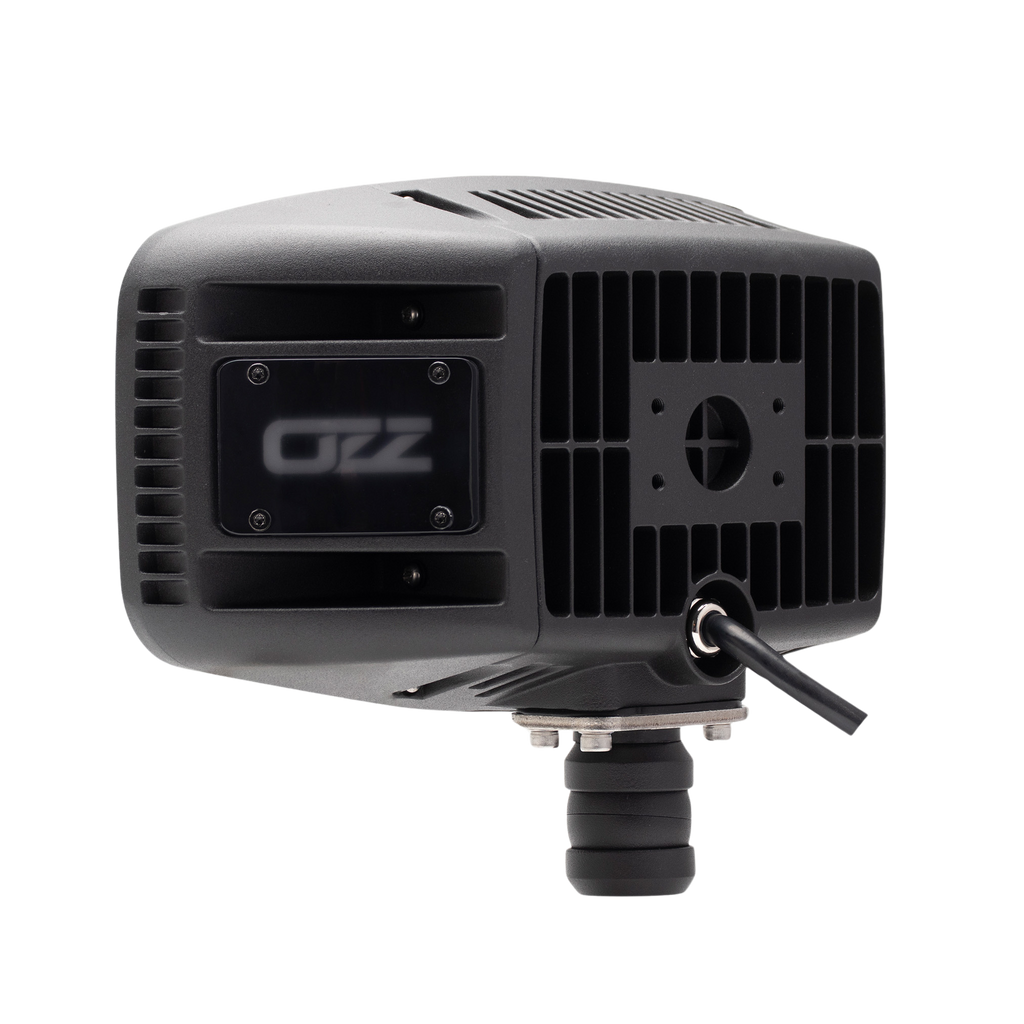

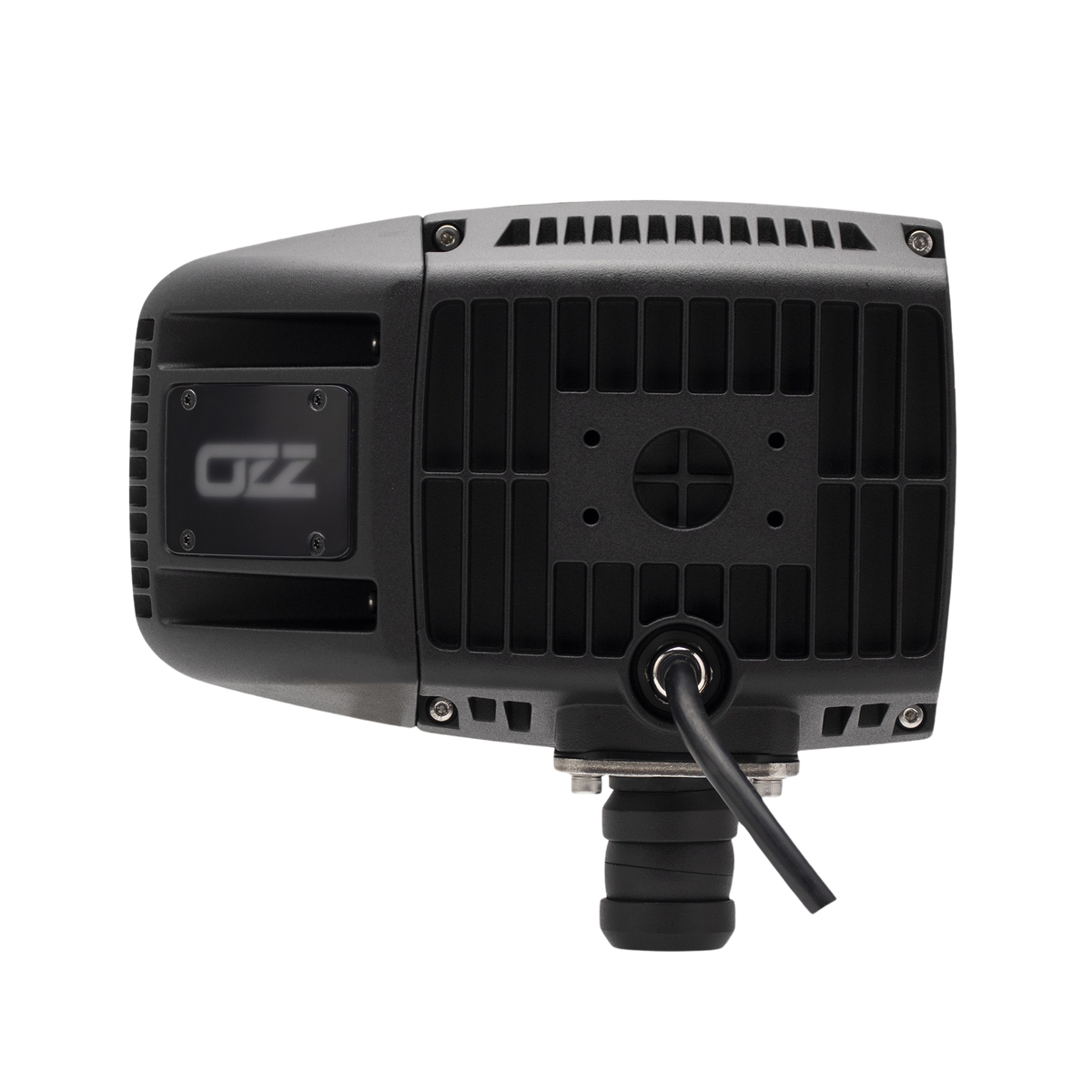

- Surface-mount design; adjustable/detachable side indicator module
- Approvals listed by manufacturer: CE, ECE R10, ECE R148, ECE R149 and ECE R23
- Manufacturer warranty: 3 years
Typical applications
Suitable for consideration on tractors, forklifts, excavators and other plant or work vehicles. Check available mounting space, connector wiring, vehicle controls and the required lighting approvals for your specific application before installation.
Note: This is an individual headlamp; confirm whether one or a pair is required for your installation.
