12V 3000W Pure Sine Wave Inverter with UPS Backup

The Renogy PUH1 12V pure sine wave inverter supplies mains-style AC power from a 12V leisure-battery system, making it suitable for carefully designed campervan, motorhome and mobile-workshop electrical installations. Choose the 1000W, 2000W or 3000W version to suit your appliances and available battery capacity.

Why choose this inverter?

• Pure sine wave AC output for a smooth, stable supply to compatible electrical appliances
• Built-in automatic changeover between external AC supply and battery/inverter power, with transfer within 50ms
• Mains/grid-priority operation when a suitable external AC supply is connected
• Electronic protection functions, internal backup DC fuse and temperature-controlled cooling

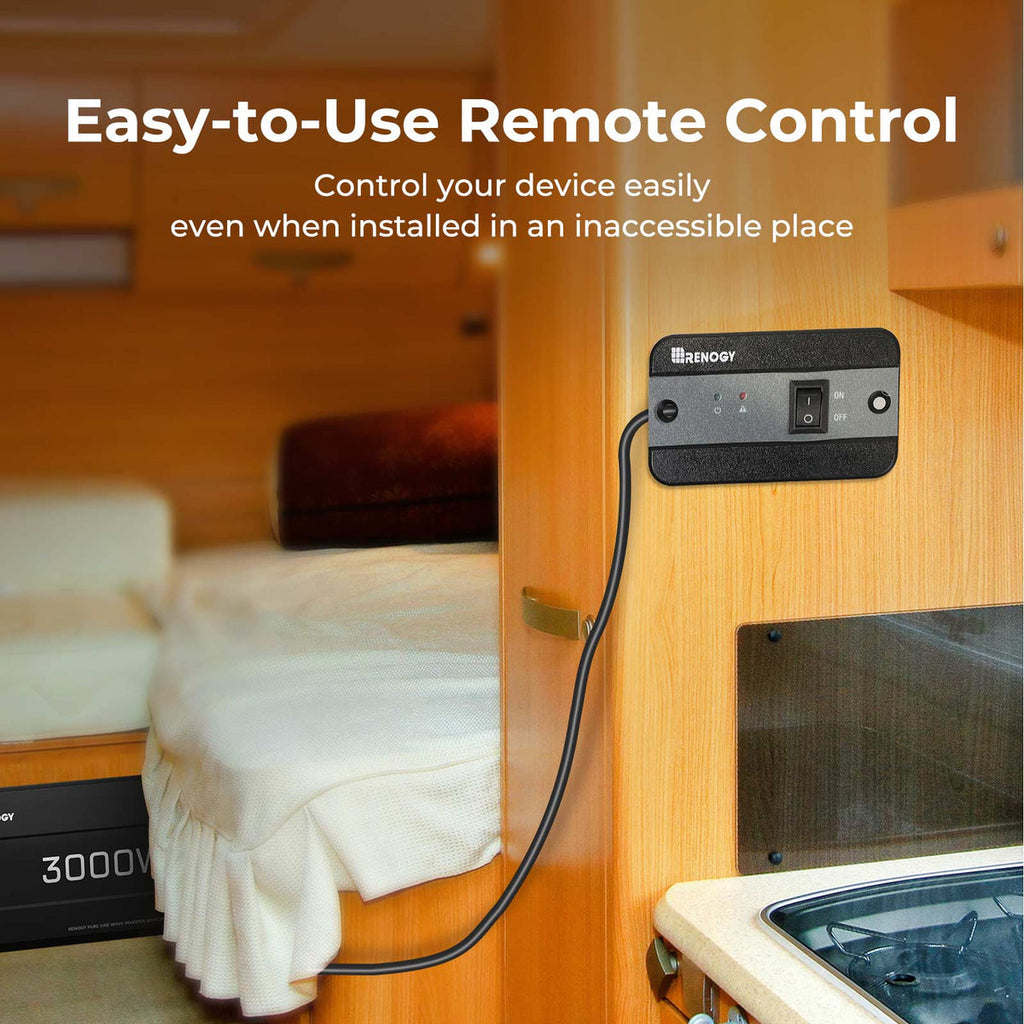

• Supplied with a wired remote control and approximately 3m remote cable

Choose the correct power rating

• 1000W continuous / 2000W peak — SKU R-INVT-PUH1-101235-UK
• 2000W continuous / 4000W peak — SKU R-INVT-PUH1-201235-UK
• 3000W continuous / 6000W peak — SKU R-INVT-PUH1-301235-UK

3000W version: electrical and physical specifications

• Nominal battery input: 12V DC; specified input range 11–16V DC
• AC output: 220V AC ±10%, 50Hz (check appliance compatibility)
• Maximum quoted conversion efficiency: 90%
• Low-voltage shutdown: approximately 10V DC; high-voltage shutdown: approximately 16.3V DC
• Dimensions: 482 x 220 x 92mm; weight approximately 6.4kg
• Manufacturer's stated working temperature: 0–40°C

Specifications above this paragraph apply to the 3000W model only; the 1000W and 2000W models have different dimensions and electrical limits.

What's included?

• One Renogy inverter in the selected wattage
• One wired remote control

Battery cables are not supplied as standard. The manufacturer lists approximately 4 AWG for 1000W, 1/0 AWG for 2000W and 4/0 AWG for 3000W as reference cable sizes; actual cable and fuse selection must be calculated for installation length, load and applicable standards.

Fitting advice

Allow adequate ventilation, use suitably rated battery cables and overcurrent protection, and provide safe AC installation and changeover arrangements. High-power 12V inverters draw very substantial battery current. D.Y Fleet Installations can advise on suitable vehicle electrical installations.
