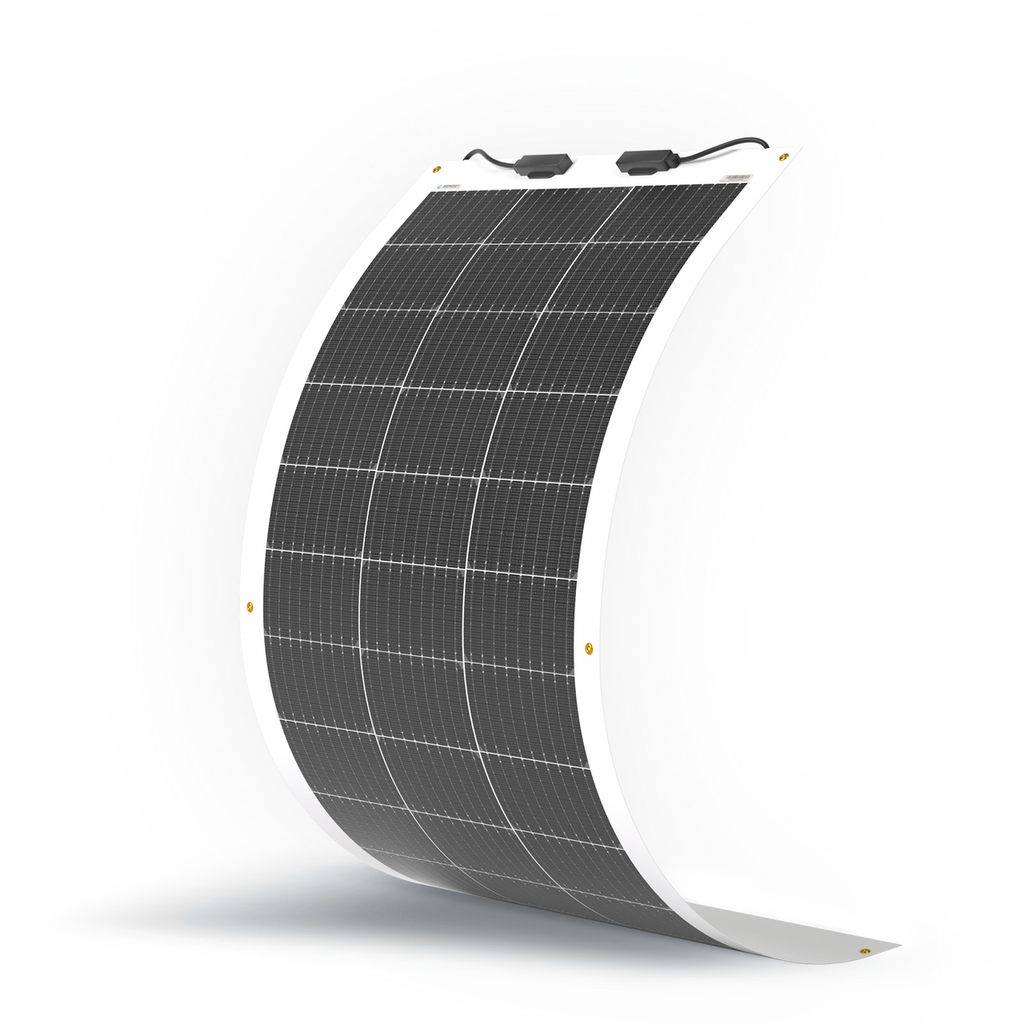

100 Watt 12 Volt Flexible Monocrystalline Solar Panel

The Renogy 100W 12V Flexible Monocrystalline Solar Panel (base SKU RNG-100DB-H-UK) is a thin, lightweight option for campervan, motorhome and other suitable off-grid installations where a conventional framed panel may be impractical. Choose one, two or four panels using the product options.

Key features

• Rated 100W per panel under standard test conditions

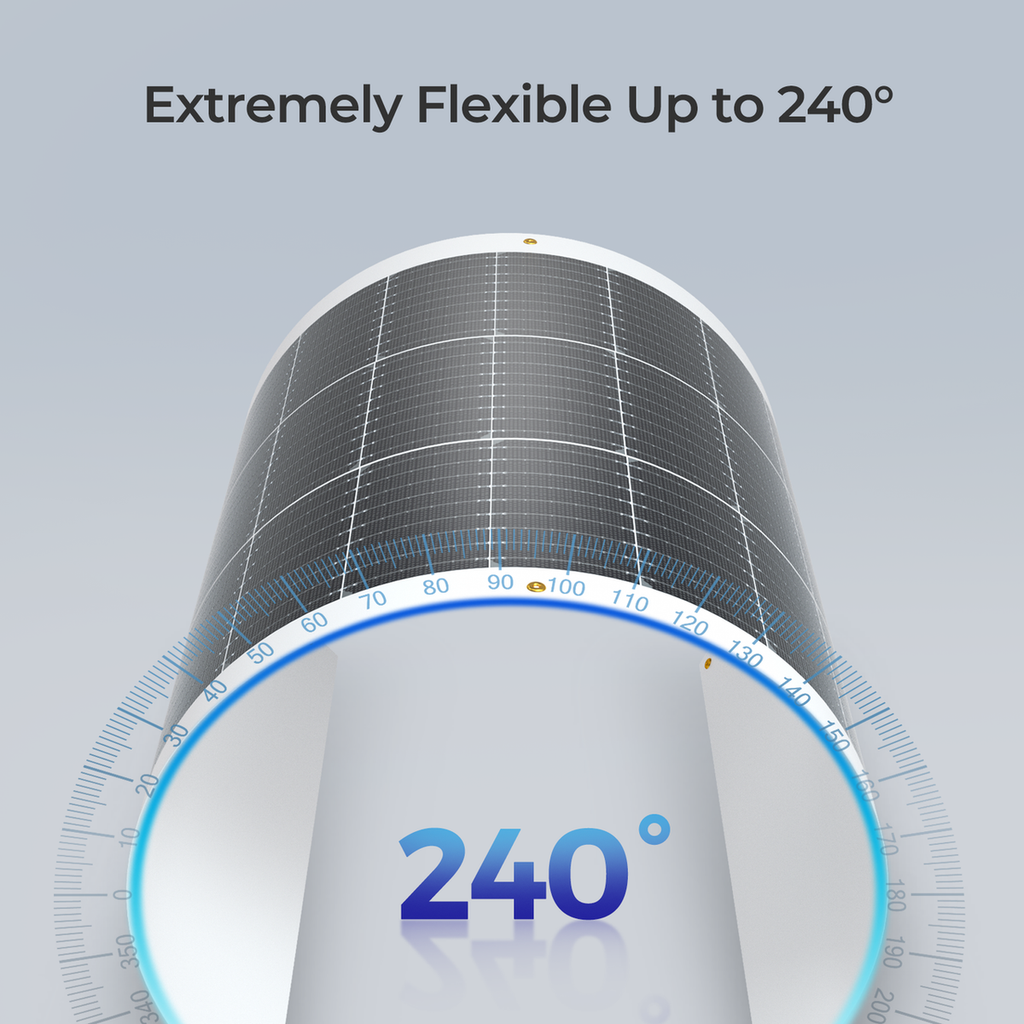

• Flexible monocrystalline construction with a supplier-stated bending capability of up to 240°; always follow its specific mounting radius instructions

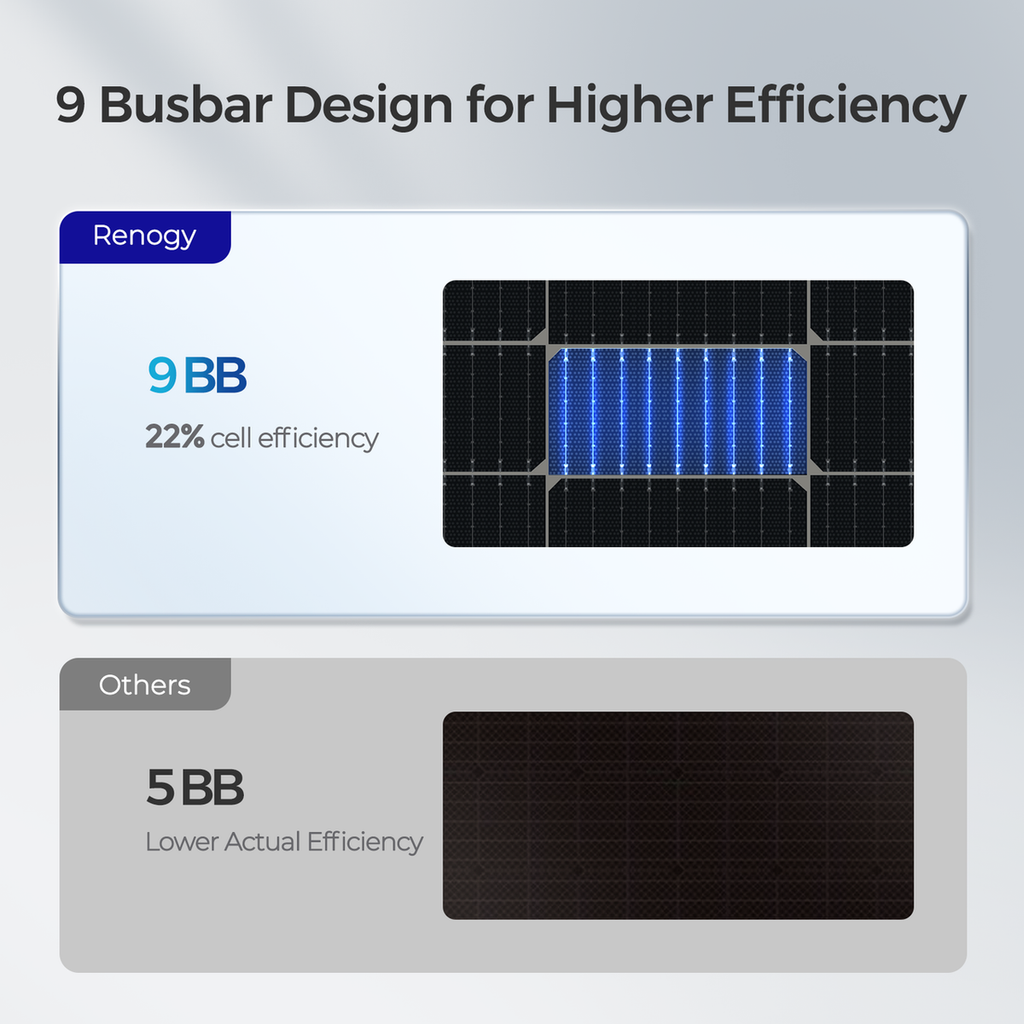

• 9-busbar cell layout and IP67 junction box/solar connectors
• Lightweight panel approximately 3mm thick
• Renogy's listed 5-year product and performance warranty, including its stated 90% output guarantee at 5 years

Electrical and physical specifications — per panel

• Maximum power (Pmax): 100W
• Maximum-power voltage (Vmp): 20.7V; current (Imp): 4.84A
• Open-circuit voltage (Voc): 24.4V; short-circuit current (Isc): 5.16A
• Maximum system voltage: 600V DC; maximum series fuse: 15A
• Panel efficiency: approximately 15.7%
• Dimensions: 1093 × 582 × 3mm
• Weight: approximately 2.4kg per panel
• Supplier temperature range: −40°C to +80°C

Choose your quantity

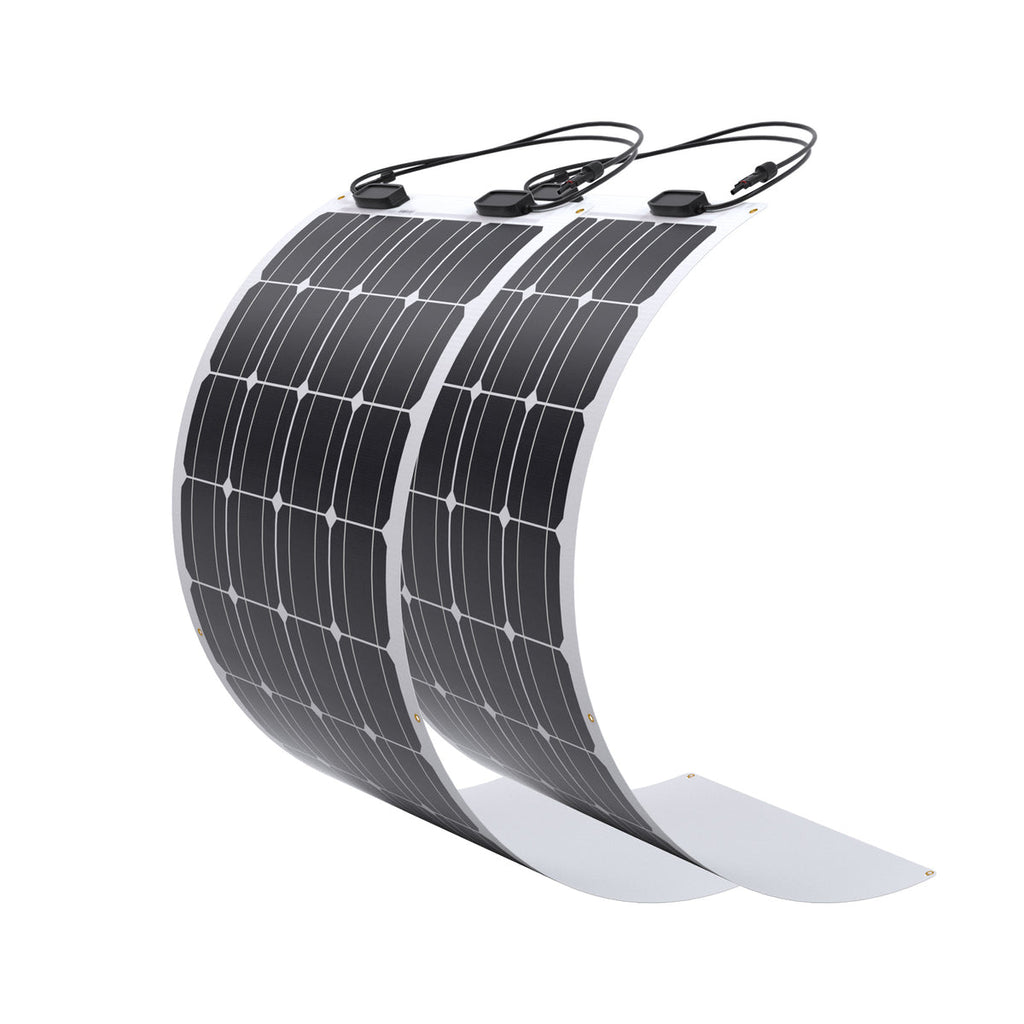

• 1 panel: 100W nominal
• 2 panels: 200W combined nominal
• 4 panels: 400W combined nominal

What's included?

The selected quantity of Renogy 100W flexible solar panels. Charge controller, roof adhesive, mounting hardware and installation wiring are separate unless specifically listed as part of a bundle.

Fitting and system sizing

Clean and prepare the intended surface, allow appropriate drainage and cooling, avoid sharp bends and bond only with a manufacturer-approved method. Match string voltage and current to the solar controller, including increased Voc in cold conditions. Actual output depends on sunlight, shading and roof temperature. D.Y Fleet Installations can advise on vehicle solar installations.
