TRALERT Graveler Series 12,000lm LED Driving Light
TRALERT Graveler Series 12,000lm LED Driving Light
The TRALERT Graveler Series is a round high-output LED driving-light family for trucks, commercial vehicles and 4×4 applications. Both versions combine a powerful driving beam with selectable white and amber position lights; choose the housing finish required while retaining the original TRALERT SKU.
- 9–36V operation
- 12,000-lumen technical output
- Driving-beam optics
- White and amber position lights
- Approximately Ø218 × 84mm housing
- 300cm cable with 4-pin Deutsch connector
- Aluminium housing with polycarbonate lens
- IP69K protection
- CE, ECE R10, driving-light and position-light approvals
- 2-year manufacturer warranty

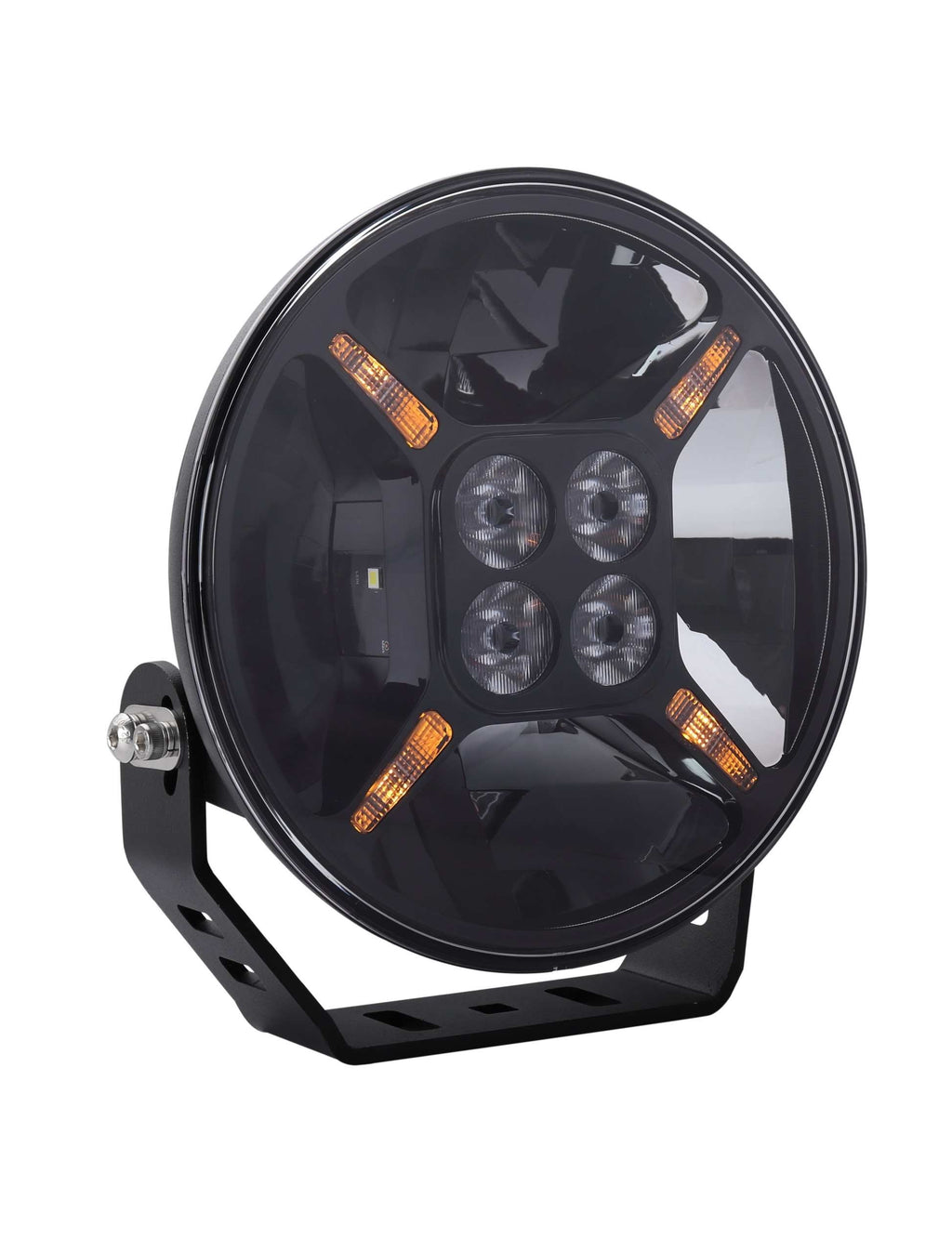

WD-80120.1: black aluminium housing.

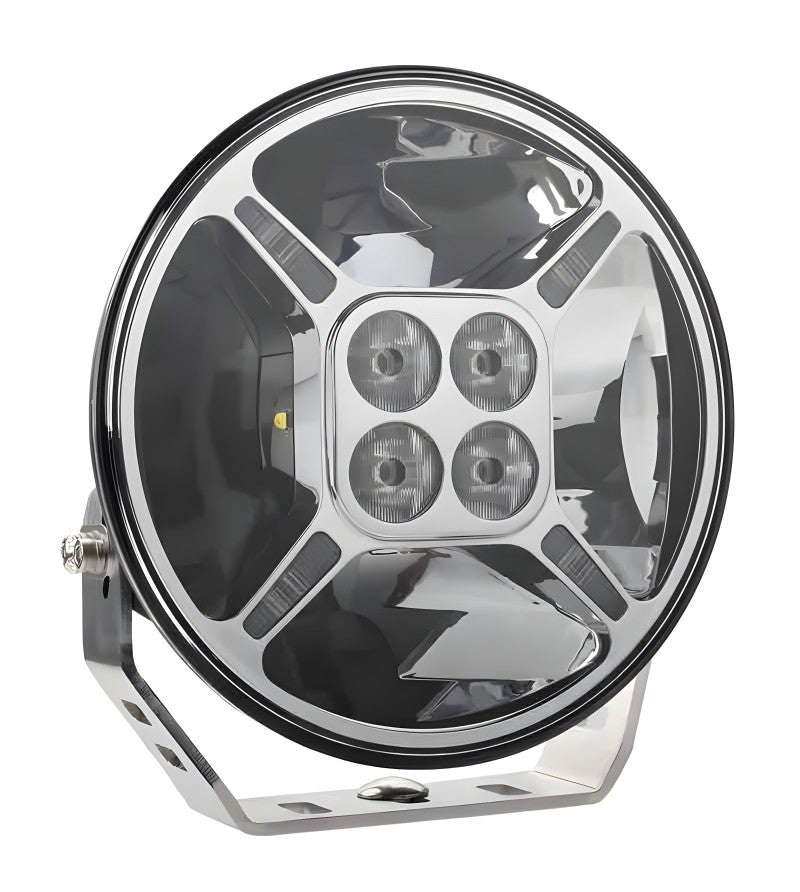

WD-80120C.1: chrome-finish housing. Current published electrical figures differ slightly between Graveler documents, so select by the exact SKU/finish rather than assuming every electrical value is identical.
