ECCO ESG ED3744 ED3755 Split-Colour R65 Class 2 Warning Light

The ECCO ESG ED3744 and ED3755 are low-profile amber/white split-colour warning lights from the ED3700 family, combining approved amber warning output with a white secondary light function in one housing.

Choose the required size and LED count. Each version keeps its original supplier SKU and price.

• 12–24V operation
• Amber and white split-colour output
• ECE R65 Class 2 approved
• 13 selectable flash patterns
• Flashing and cruise-mode functions
• Synchronisation, dimming and steady-burn capability
• 35 × 15mm low-profile body
• Black polycarbonate housing with transparent polycarbonate lens
• IP67 protection
• 19cm cable with open-wire connection
• Surface mounting
• Optional mounting bracket
• CE and ECE R10 approved
• 5-year manufacturer warranty

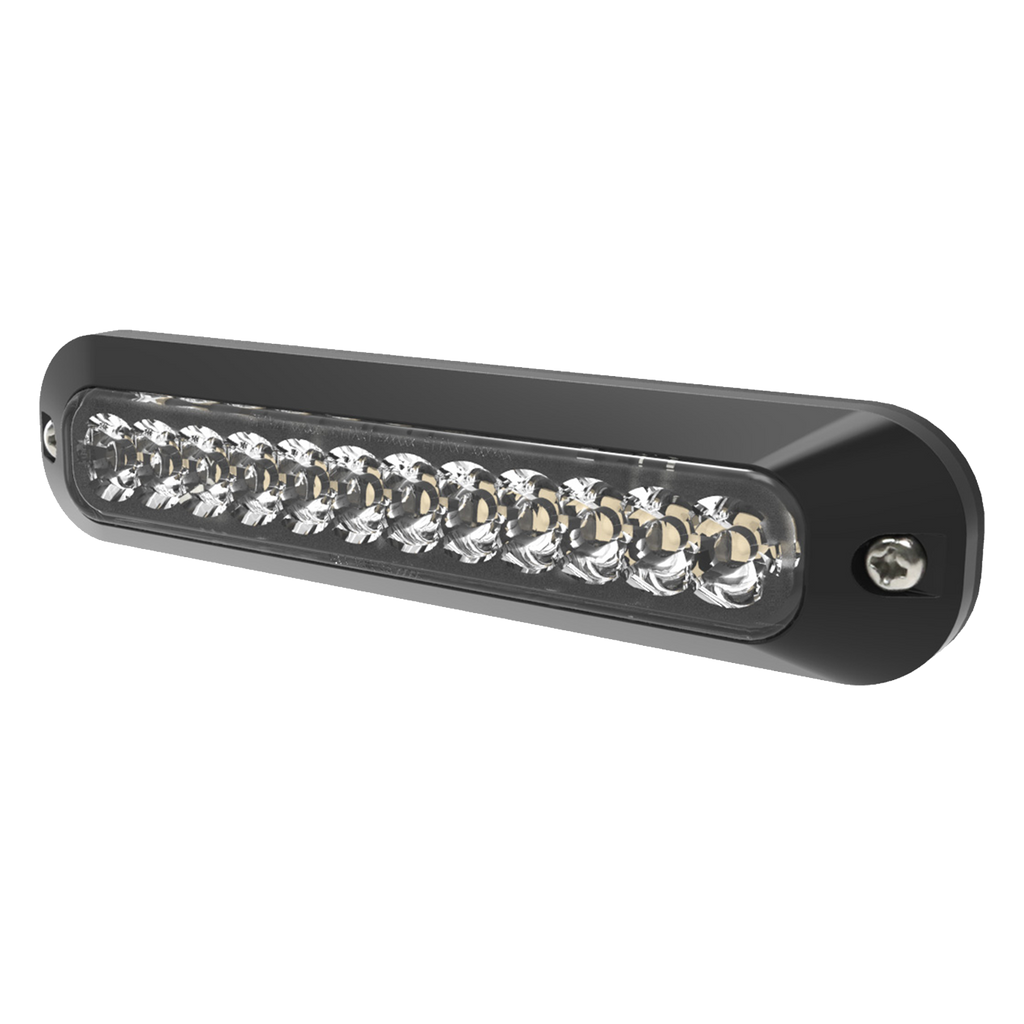

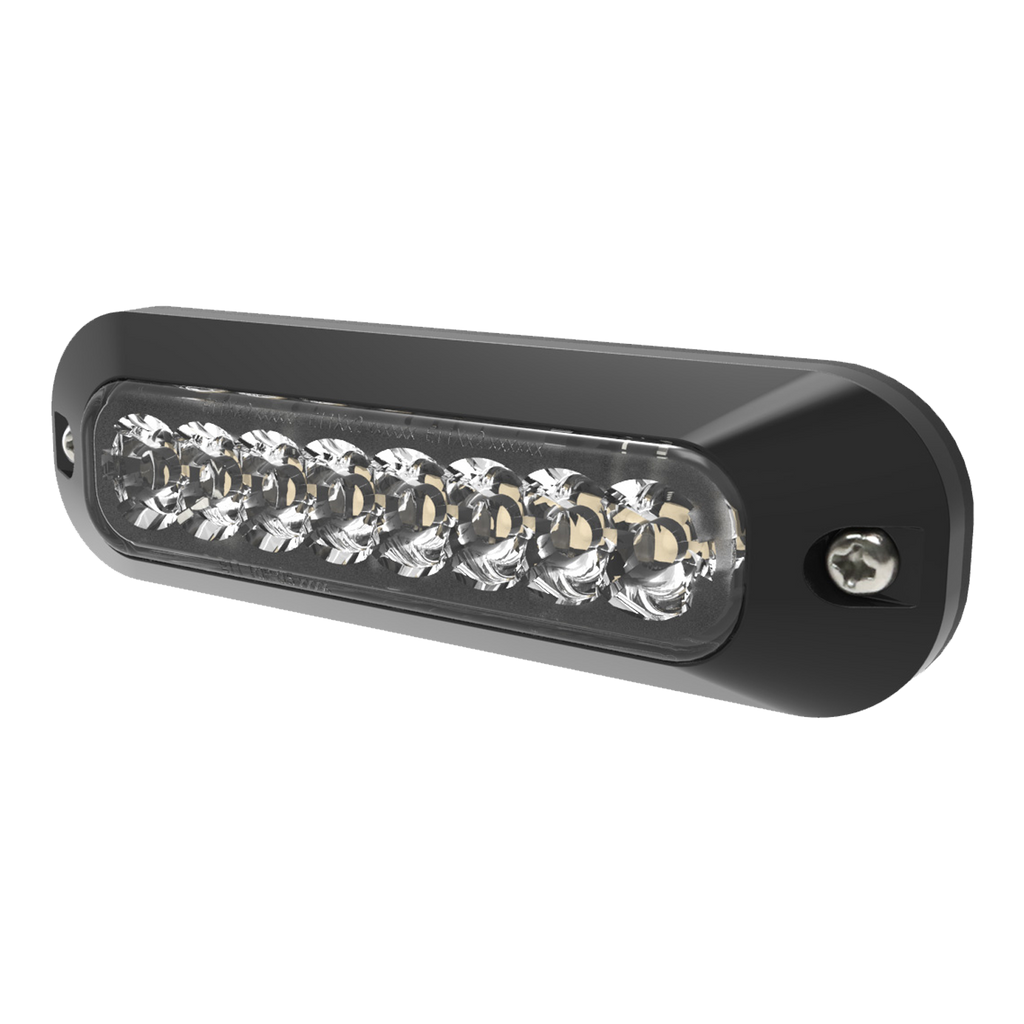

The ED3744AC is the 8-LED 120mm version with 105mm mounting centres. The ED3755AC is the 12-LED 158mm version with 143mm mounting centres. TRALERT’s current ED3755AC page heading still says 8-LED, but its technical specification lists 12 LEDs, which is used here.
